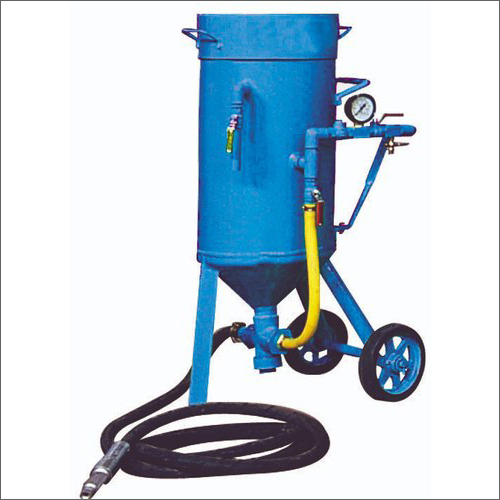

P-150 Portable Abrasive Blasting Machine

Send Inquiry

Request To Call Back

P-150 Portable Abrasive Blasting Machine

Name: P-150 Portable Abrasive Blasting Machine
Brand: HINDUSTAN PROJECTS & ENGINEERING CO.
Price: 39000.0 INR
Availability: InStock

Price 39000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

P-150 Portable Abrasive Blasting Machine Specification

Connectivity Options
Standard electrical input

Features
Portable design, Heavy-duty construction, Easy operation, CNC compatible

Lubricating System
Manual Lubrication

Frequency
50 Hz Hertz (HZ)

Machine Type
Sand Blasting Machine

Model No
P-150

Voltage
220 V Volt (v)

Operating Temperature
5C to 50C Celsius (oC)

Frame Type
Robust welded steel frame

Cooling System
Air Cooled

Drive
Direct Drive

Noise Level
< 85 dB db

Power Rating
2.2 kW

Control System
Manual Control Valve

Motor Power
3 HP Horsepower (HP)

Product Type
Sand Blasting Machine

Technology
CNC

Power Source
Electricity

Operating Type
Semi Automatic

Power
3 HP Horsepower (HP)

Pressure
7 Bar (100 psi) Bar

Surface Treatment
Abrasive Blasting

Dimension (L*W*H)
700 x 1100 x 1720 mm Millimeter (mm)

Weight (kg)
130 kg Kilograms (kg)

Color
Blue and Yellow

Production Capacity
42 Liter/day

Usage & Applications
Surface Cleaning, Paint Removal, Rust Removal, Preparing Metal for Coating

Recommended Abrasive Material
Garnet, Glass Bead, Aluminum Oxide

Air Requirement
8-10 CFM

Abrasive Tank Capacity
150 Litres

Mobility
Fitted with 2 wheels for portability

Standards Compliance
IS 2825, CE Certified

Safety Equipment Provided
Yes (Operator Suit & Helmet Included)

Maintenance
Low Maintenance Design

Nozzle Type
Tungsten Carbide

Blasting Hopper Diameter
500 mm

Working Speed
0.6-1.2 m²/min

Hose Length
5 metres

Maximum Working Pressure
8 Bar (Max)

P-150 Portable Abrasive Blasting Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Day

Delivery Time
8-10 Days

Main Export Market(s)
South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Central America, North America

Main Domestic Market
All India

About P-150 Portable Abrasive Blasting Machine

Fostered with rich industry experience and knowledge, we are affianced in offering a skill fully designed range of P-150 Portable Abrasive Blasting Machine to our clients. It is made by using quality approved required materials with the help of latest technology. This machine is mainly utilized for eliminating paint and coatings to improve the surface of materials. Our offered P-150 Portable Abrasive Blasting Machine is demanded in the market because of its excellent performance, good quality and superb durability.

High-Precision Surface Treatment

The P-150 provides superior surface cleaning and preparation thanks to its high-precision abrasive delivery system and adjustable manual control valves. Suitable for a broad range of industrial tasks such as rust removal, paint stripping, and pre-coating metal preparation, it ensures reliable results and a uniform finish with minimal manual intervention.

Operator Safety and Comfort

Safety is a priority with the P-150. The machine comes equipped with an operator suit and helmet for complete protection during blasting operations. With a noise level below 85 dB and an air-cooled system to maintain operational temperature, users benefit from a safer and more comfortable working environment.

Portable and Low-Maintenance Design

Portability is at the core of the P-150s design, featuring a two-wheel system for easy transportation within your facility or jobsite. Built with a robust welded steel frame, it is both durable and low maintenance, ensuring long operational life and reduced downtime. Its direct drive and manual lubrication keep servicing straightforward and cost-effective.

FAQs of P-150 Portable Abrasive Blasting Machine:

Q: How do I operate the P-150 Portable Abrasive Blasting Machine?

A: To operate the P-150, connect the machine to a compatible electrical supply (220 V, 50 Hz), fill the abrasive hopper with the recommended abrasives, and ensure all connections are secure. Use the manual control valve to regulate the abrasive flow and operate the machine using the intuitive controls. Always wear the provided operator suit and helmet for safety.

Q: What types of abrasives can I use with the P-150 machine?

A: The P-150 is compatible with garnet, glass bead, and aluminum oxide abrasive materials. These options enable effective surface cleaning, paint removal, and metal preparation for coatings, fitting a variety of industrial applications.

Q: Where is the P-150 machine best used?

A: This machine is ideal for factories, workshops, and job sites in industries requiring surface cleaning, rust removal, and paint stripping. Its portable design allows for easy mobility across different work environments, both indoors and outdoors.

Q: What benefits does the tungsten carbide nozzle provide?

A: The tungsten carbide nozzle offers exceptional durability and wear resistance, ensuring consistent abrasive flow and prolonged service life even under heavy-duty use, which translates into reduced maintenance and replacement costs.

Q: How often should maintenance be performed on the P-150?

A: Thanks to its low-maintenance design and direct drive system, the P-150 requires only periodic checks and manual lubrication. Inspect the abrasive hopper, control valves, and cooling system regularly to ensure optimal performance and longevity.

Q: What safety equipment is included with the machine?

A: Every P-150 comes with an operator suit and helmet, ensuring user protection from abrasive particles and dust during operation. This personal protective equipment is essential for maintaining safety standards in abrasive blasting environments.

Q: What are the main benefits of using the P-150 Portable Abrasive Blasting Machine?

A: The P-150 offers high precision, ease of operation, portability, and compatibility with CNC technology. Its robust construction and portable design make it efficient for a range of surface treatment tasks, delivering consistent and high-quality results while maintaining operator safety.
